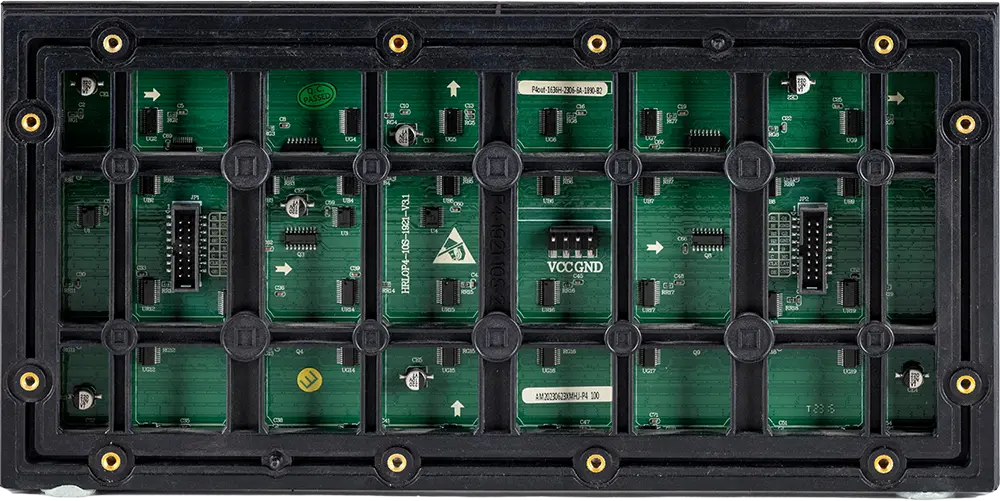

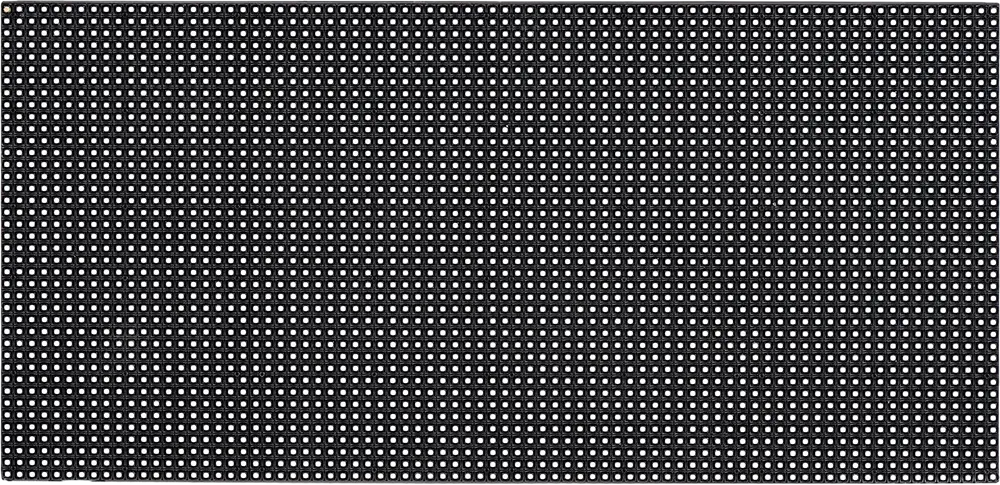

OUTDOOR MODULE
- Available Pixel Pitches: 4mm, 5mm, 6mm, 8mm, 10mm
- Brightness: Up to 4500 Nits
- Refresh Rate: 3840 Hz
- Value engineering solution for outdoor advertising and display solutions.
- Key Features:
- Exceptional durability and extended lifespan.
- Stable and reliable performance across weather conditions.
- Manufactured with premium-quality raw materials.
- Low failure rate ensuring minimal downtime and maintenance.
- Ideal Applications:

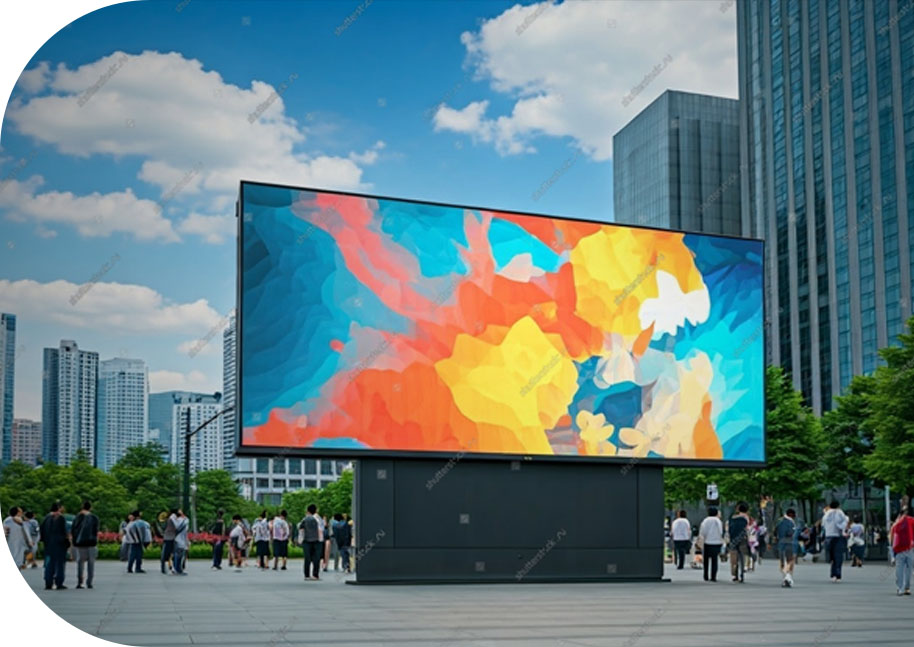

- Digital billboards
- Outdoor signage
- Public transportation hubs

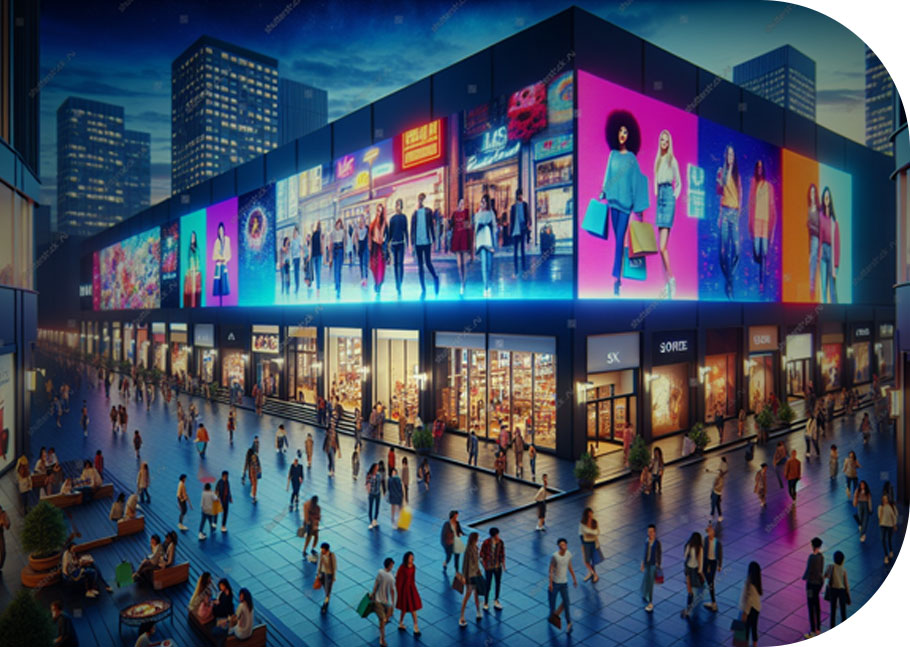

- Commercial building facades
High Brightness LED Display
With brightness up to 1000 nits, these LED displays remain clearly visible even under direct sunlight.
Advanced Moisture Protection
Nano-coating technology shields the LED surface, protecting it effectively against moisture and humidity.
Perfect Flatness
Crafted from high-strength die-cast aluminum, these displays ensure exceptional durability and high surface flatness.
Easy Service & Maintenance
Cable-free modules ensure easy and efficient maintenance. Lightweight design allows quick installation and dismantling, saving you valuable time
SPECIFICATIONS
| Model Name | XM Vega-1.95 | XM Vega-2.5 | XM Vega-2.98 | XM Vega-3.9 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.95 mm | 2.5 mm | 2.98 mm | 3.9 mm |
| Cabinet Dimension | 1000x500 / 500x500 / 250x250 | Same | Same | Same |
| (W x H, mm) | 250 / 250x500 / 500x250 | Same | Same | Same |
| Weight (kg/m²) | 20 | 20 | 20 | 20 |
| Service Access | Front | Front | Front | Front |
| Maximum Brightness | 1000 | 1000 / 3500 | 1000 / 3500 | 1000 / 3500 |
| Viewing Angle | 160x160 | 160x160 | 160x160 | 160x160 |
| Contrast Ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 |
| Max Power (W/m²) | 580 | 450 / 580 | 450 / 580 | 450 / 580 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Ingress Protection | Front IP30 / Back IP30 | Same | Same | Same |
| Cabinet Type | Die-Cast Al | Same | Same | Same |
| Data Processing | 14-16 Bit | Same | Same | Same |
| Certification | CE-EMC, CE-LVD, FCC, BIS | Same | Same | Same |
comes in Multiple variants, standard and high brightness
These specifications are standard and can be customized. May change without prior notice.
