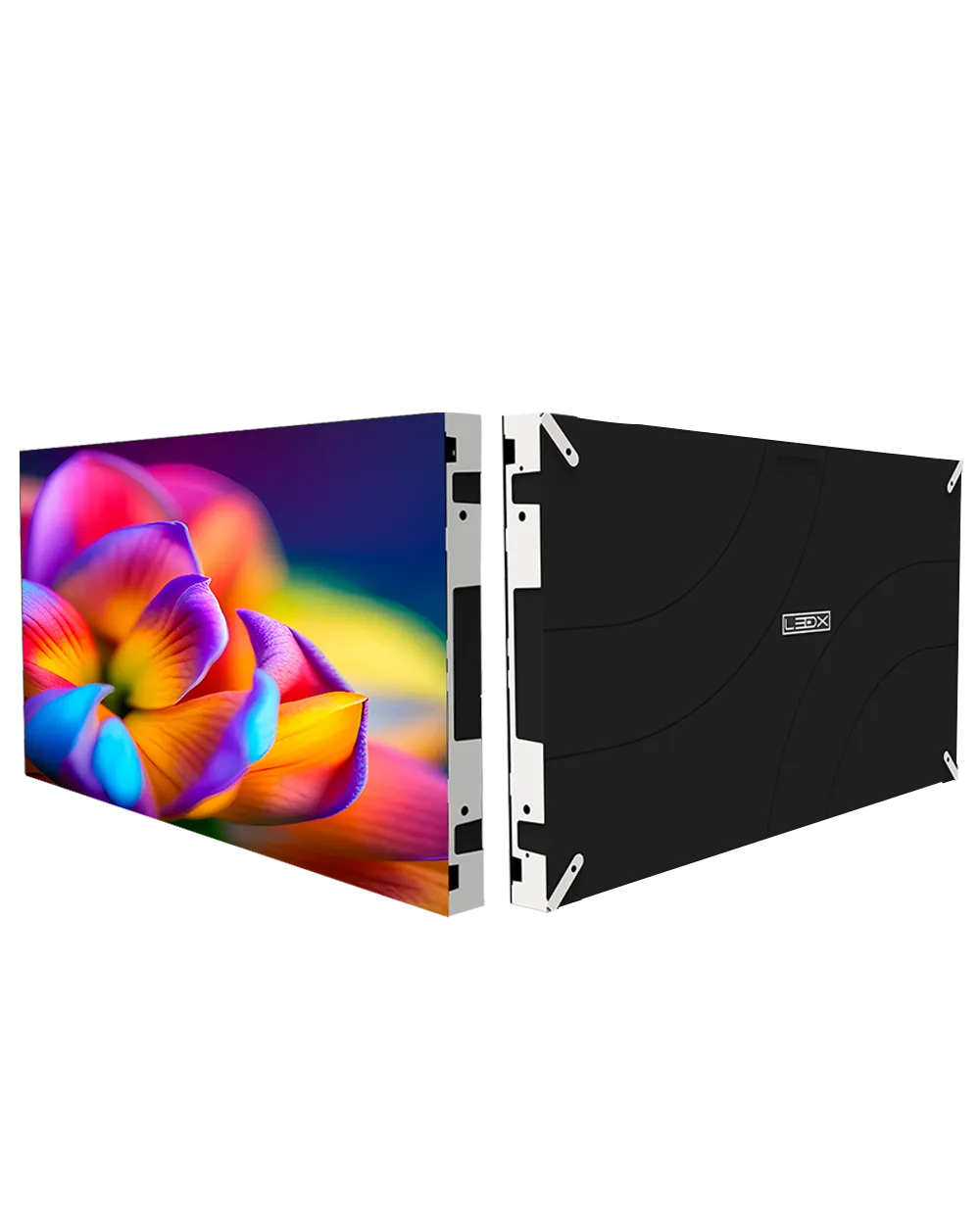

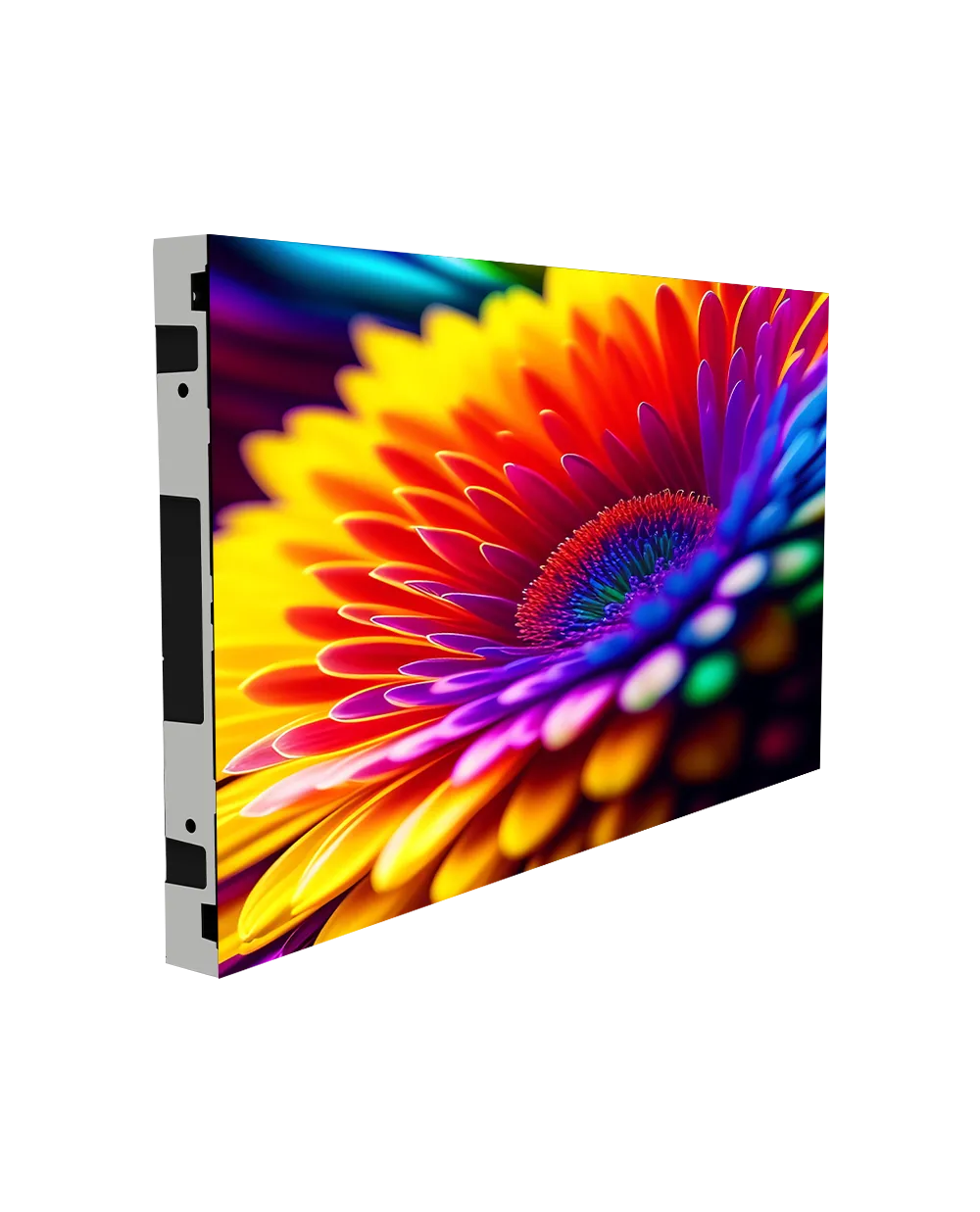

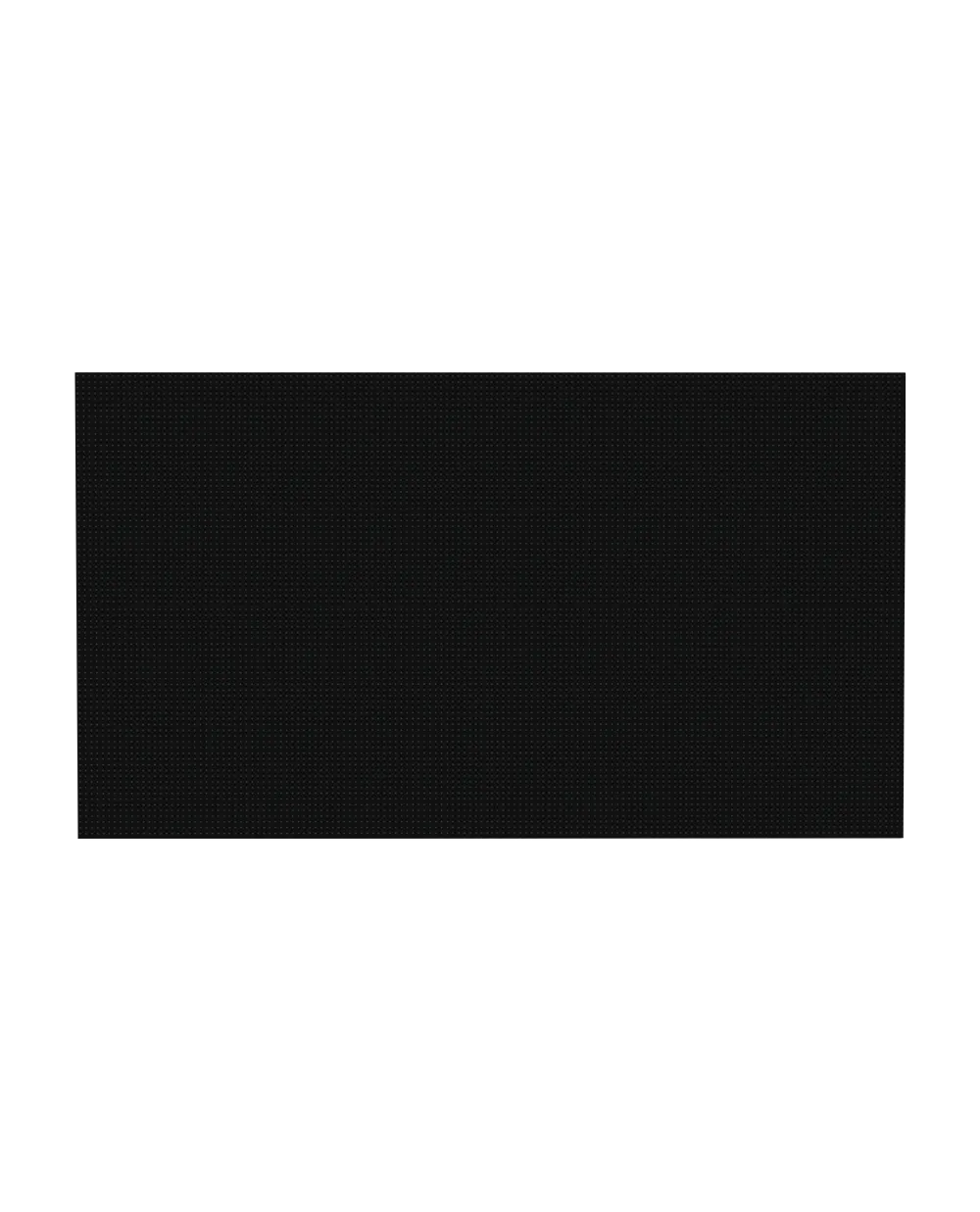

FINE PITCH - AC SERIES
AC SERIES
- Fine Pitch LED Displays
- Dimension: 600 × 337.5 mm
- Pixel Pitch: 1.25 mm, 1.56 mm, 1.8 mm
- High Contrast Ratio
- Advanced Greyscale
- Superior Image Quality
- Slim Die-Cast Cabinets
PRODUCT HIGHLIGHTS
High Contrast Ratio
Engineered for deeper blacks and brighter highlights, the AC Series delivers an exceptional contrast ratio, enhancing depth, clarity and visual realism across every frame.
Advanced Greyscale Performance
With high-bit greyscale processing, the display ensures smooth gradients and precise light control, enabling richer details and superior depth even in low-brightness scenes.
Slim & Lightweight Design

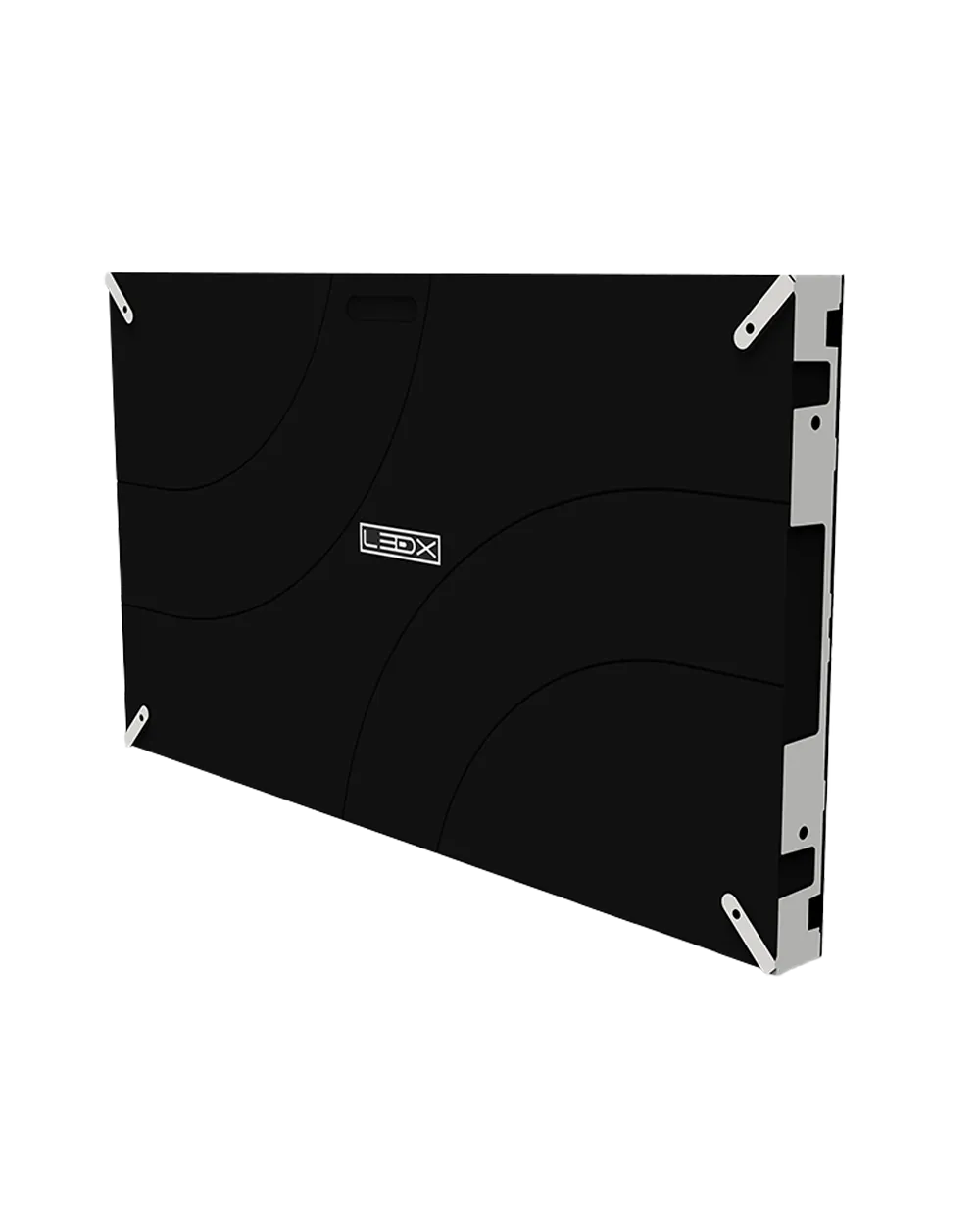

Built with precision die-cast aluminum, the cabinets are ultra-slim and lightweight, allowing seamless integration into modern spaces while simplifying installation and handling.
Superior Image Quality
Optimized for fine-pitch applications, the AC Series delivers sharp visuals, uniform brightness and accurate color reproduction—ensuring a consistently immersive viewing experience.
SPECIFICATIONS
| Model Name | AC - 1.25 | AC - 1.56 | AC - 1.8 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.25 mm | 1.56 mm | 1.8 mm |
| Cabinet Dimension (W x H, mm) | 600 X 337.5 | 600 X 337.5 | 600 X 337.5 |
| Weight (kg/m²) | 19.1 | 19.1 | 19.1 |
| Service Access | Front | Front | Front |
| Maximum Brightness (nits) | 600 | 600 | 600 |
| Viewing Angle | 160 X 160 | 160 X 160 | 160 X 160 |
| Contrast Ratio | 6000:1 | 6000:1 | 6000:1 |
| Max Power (W/m²)* | 456 | 456 | 280 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 |
| Ingress Protection | Front IP30 / Back IP30 | Front IP30 / Back IP30 | Front IP30 / Back IP30 |
| Cabinet Type | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium |
| Data Processing | 14 Bit | 14 Bit | 14 Bit |
Comes in Multiple variants, standard and high brightness.
These specifications are standard and can be customized. May change without prior notice.
