OUTDOOR - AG SERIES
AG SERIES
- Outdoor LED Displays
- Dimension: 960 x 960mm
- Pixel Pitch: 4mm, 5mm, 6.67mm, 8mm, 10mm
- IP66 Front & Rear Protection
- Seamless Corner Integration
- Brightness up to 4500 Nits
- Fan-less Slim Die-Cast Cabinets
PRODUCT HIGHLIGHTS

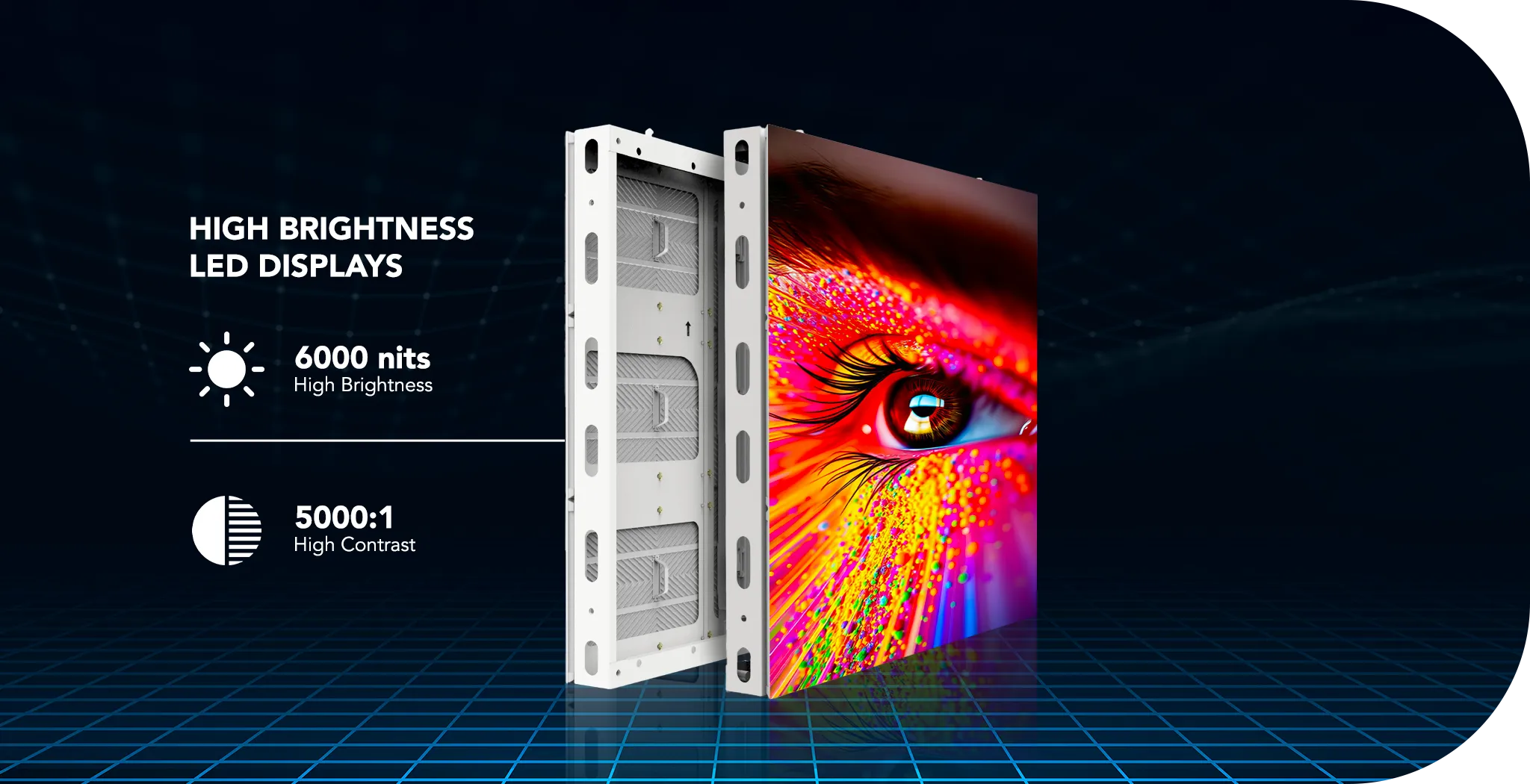

Brightness up to 6000 Nits
Delivering brightness levels up to 6000 nits, the AG Series ensures vivid visuals and exceptional clarity even under direct sunlight and challenging outdoor lighting conditions.
IP65 Rated – Complete Front & Rear Protection
Built to perform in the harshest outdoor environments, AG Series features IP66-rated protection on both front and rear. The rugged, weatherproof construction safeguards against dust, heavy rain and extreme conditions, ensuring uninterrupted performance in any climate.
Perfectly Seamless. Immersive from Every Angle
Engineered for creative freedom, AG Series supports seamless corner integration for curved and L-shaped installations. This enables captivating naked-eye 3D visuals with flawless continuity, delivering an immersive viewing experience from every perspective.
Lightweight Cabinet Design
Designed for effortless handling and efficient installation, the lightweight cabinet structure enhances deployment flexibility while maintaining durability and long-term outdoor reliability.
SPECIFICATIONS
| Model Name | AG - 4 | AG - 5 | AG - 6.67 | AG Pro - 4 | AG Pro - 5 | AG Pro - 6.67 | AG Pro - 8 | AG Pro - 10 |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 4 mm | 5 mm | 6.67 mm | 4 mm | 5 mm | 6.67 mm | 8 mm | 10 mm |
| Cabinet Dimension (W x H, mm) | 960 X 960 | 960 X 960 | 960 X 960 | 960 X 960 | 960 X 960 | 960 X 960 | 960 X 960 | 960 X 960 |
| Weight (kg/m²) | 20.6 | 20.6 | 20.6 | 20.6 | 20.6 | 20.6 | 20.6 | 20.6 |
| Service Access | Front / Back | Front / Back | Front / Back | Front / Back | Front / Back | Front / Back | Front / Back | Front / Back |
| Maximum Brightness (nits) | 4500 | 4500 | 4500 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Viewing Angle | 160 X 160 | 160 X 160 | 160 X 160 | 160 X 160 | 160 X 160 | 160 X 160 | 160 X 160 | 160 X 160 |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Max Power (W/m²)* | 688 | 734 | 591 | 564 | 543 | 532 | 532 | 532 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Ingress Protection | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 |
| Cabinet Type | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame |
| Data Processing | 16 Bit | 16 Bit | 16 Bit | 16 Bit | 16 Bit | 16 Bit | 16 Bit | 16 Bit |
Comes in Multiple variants, standard and high brightness.
These specifications are standard and can be customized. May change without prior notice.
