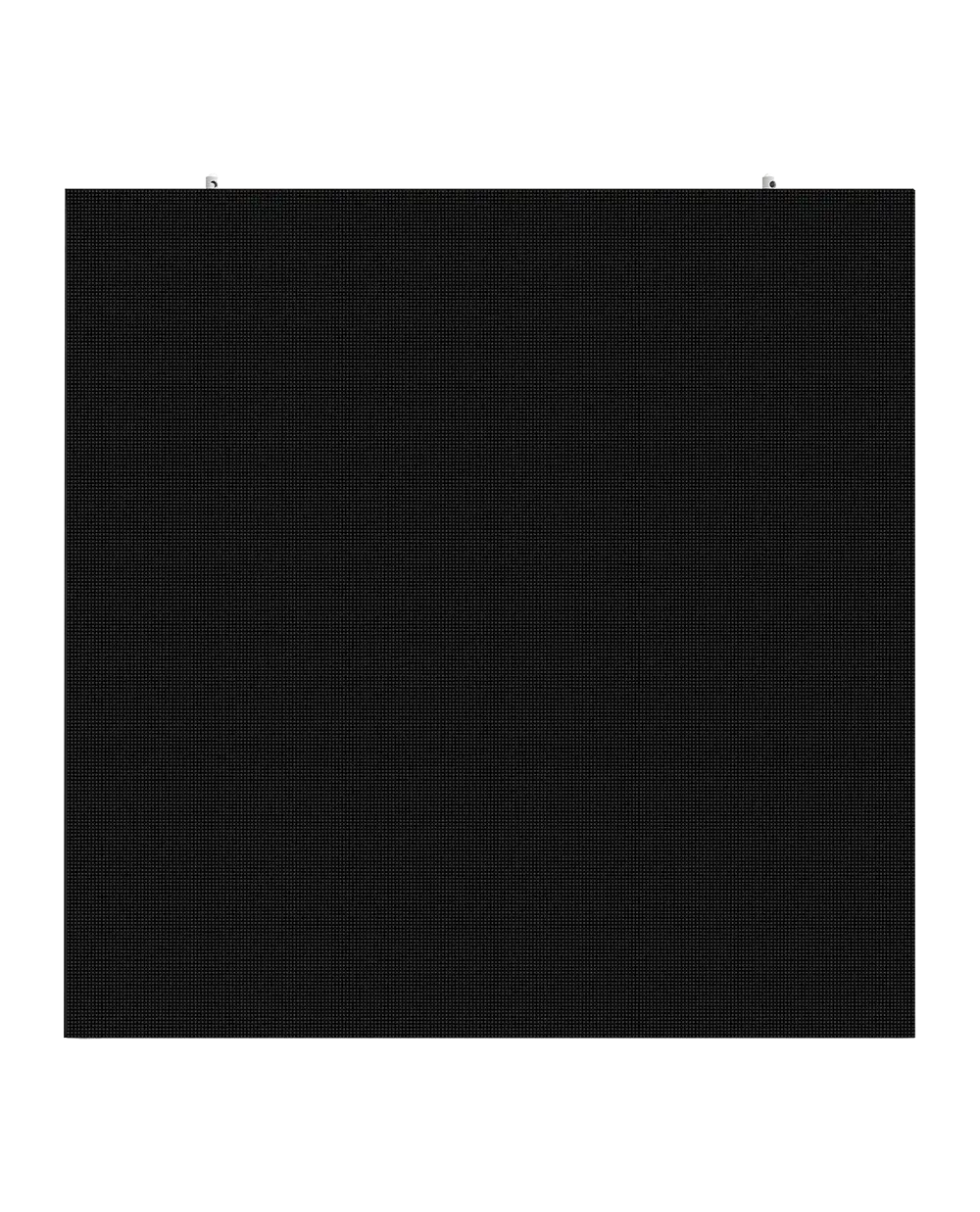

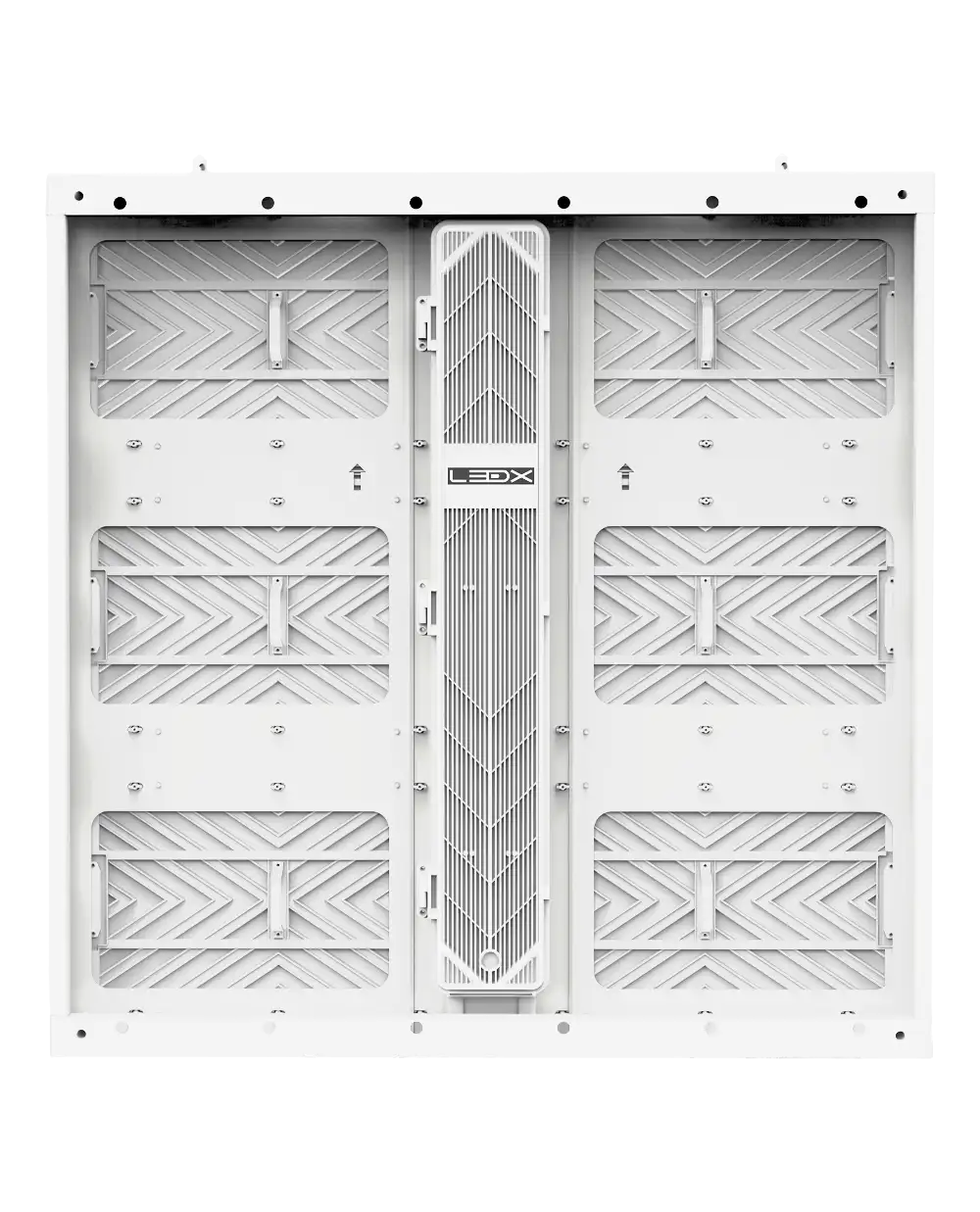

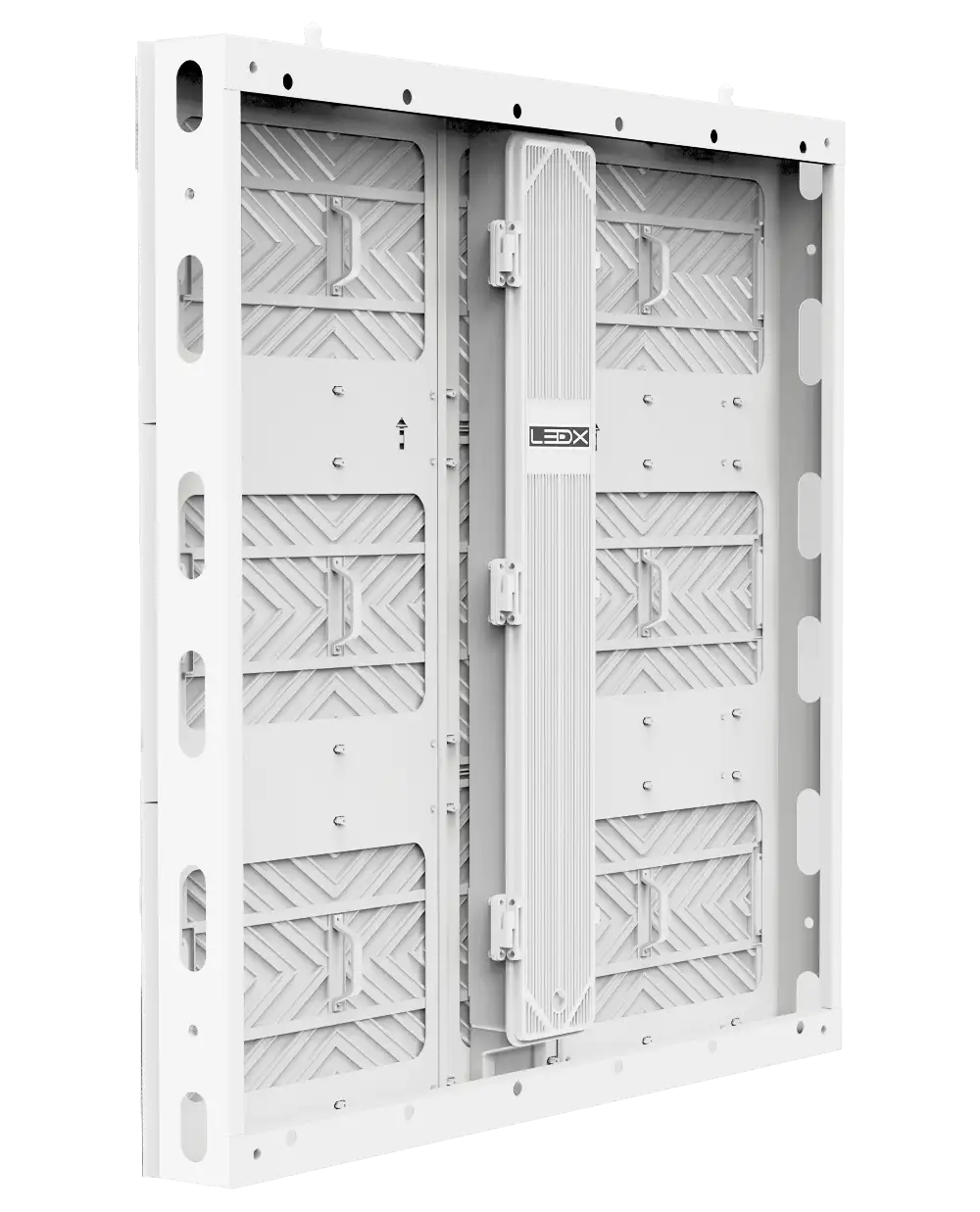

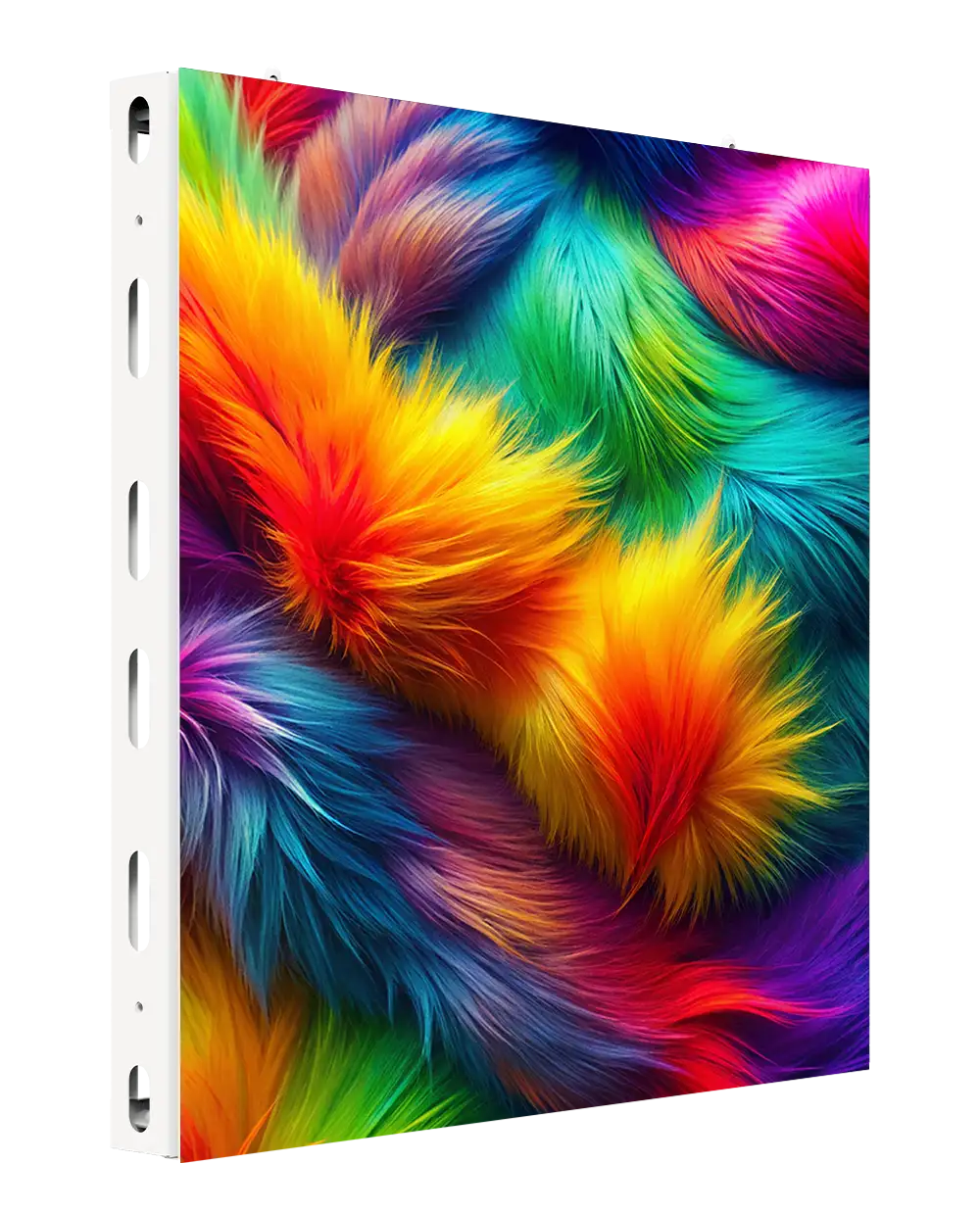

OUTDOOR - AG SERIES
AG SERIES
- Outdoor LED Displays
- Dimensão: 960 x 960mm
- Pitch de Pixel: 4mm, 5mm, 6.67mm, 8mm, 10mm
- IP66 Front & Rear Protection
- Seamless Corner Integration
- Brightness up to 4500 Nits
- Fan-less Slim Die-Cast Cabinets
PRODUCT HIGHLIGHTS
Brightness up to 6000 Nits
Delivering brightness levels up to 6000 nits, the AG Series ensures vivid visuals and exceptional clarity even under direct sunlight and challenging outdoor lighting conditions.
IP65 Rated – Complete Front & Rear Protection
Built to perform in the harshest outdoor environments, AG Series features IP66-rated protection on both front and rear. The rugged, weatherproof construction safeguards against dust, heavy rain and extreme conditions, ensuring uninterrupted performance in any climate.
Perfectly Seamless. Immersive from Every Angle
Engineered for creative freedom, AG Series supports seamless corner integration for curved and L-shaped installations. This enables captivating naked-eye 3D visuals with flawless continuity, delivering an immersive viewing experience from every perspective.
Lightweight Cabinet Design
Designed for effortless handling and efficient installation, the lightweight cabinet structure enhances deployment flexibility while maintaining durability and long-term outdoor reliability.
ESPECIFICAÇÕES
| Nome do Modelo | AG - 4 | AG - 5 | AG - 6.67 | AG Pro - 4 | AG Pro - 5 | AG Pro - 6.67 | AG Pro - 8 | AG Pro - 10 |
|---|---|---|---|---|---|---|---|---|
| Pitch de Pixel (mm) | 4 mm | 5 mm | 6.67 mm | 4 mm | 5 mm | 6.67 mm | 8 mm | 10 mm |
| Dimensão Do Gabinete (L × A, Mm) | 960 X 960 | 960 X 960 | 960 X 960 | 960 X 960 | 960 X 960 | 960 X 960 | 960 X 960 | 960 X 960 |
| Peso (kg/m²) | 20.6 | 20.6 | 20.6 | 20.6 | 20.6 | 20.6 | 20.6 | 20.6 |
| Acesso de Serviço | Frente / Trás | Frente / Trás | Frente / Trás | Frente / Trás | Frente / Trás | Frente / Trás | Frente / Trás | Frente / Trás |
| Brilho Máximo (nits) | 4500 | 4500 | 4500 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Ângulo de Visão | 160 X 160 | 160 X 160 | 160 X 160 | 160 X 160 | 160 X 160 | 160 X 160 | 160 X 160 | 160 X 160 |
| Taxa de Contraste | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Consumo Máximo de Energia (W/m²) | 688 | 734 | 591 | 564 | 543 | 532 | 532 | 532 |
| Taxa de Atualização (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grau de Proteção (Classificação IP) | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 |
| Tipo de Gabinete | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame | Die-Cast Aluminium + Steel Frame |
| Processamento de Dados | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits |
Comes in Multiple variants, standard and high brightness.
As especificações podem ser personalizadas e alteradas sem aviso prévio.
