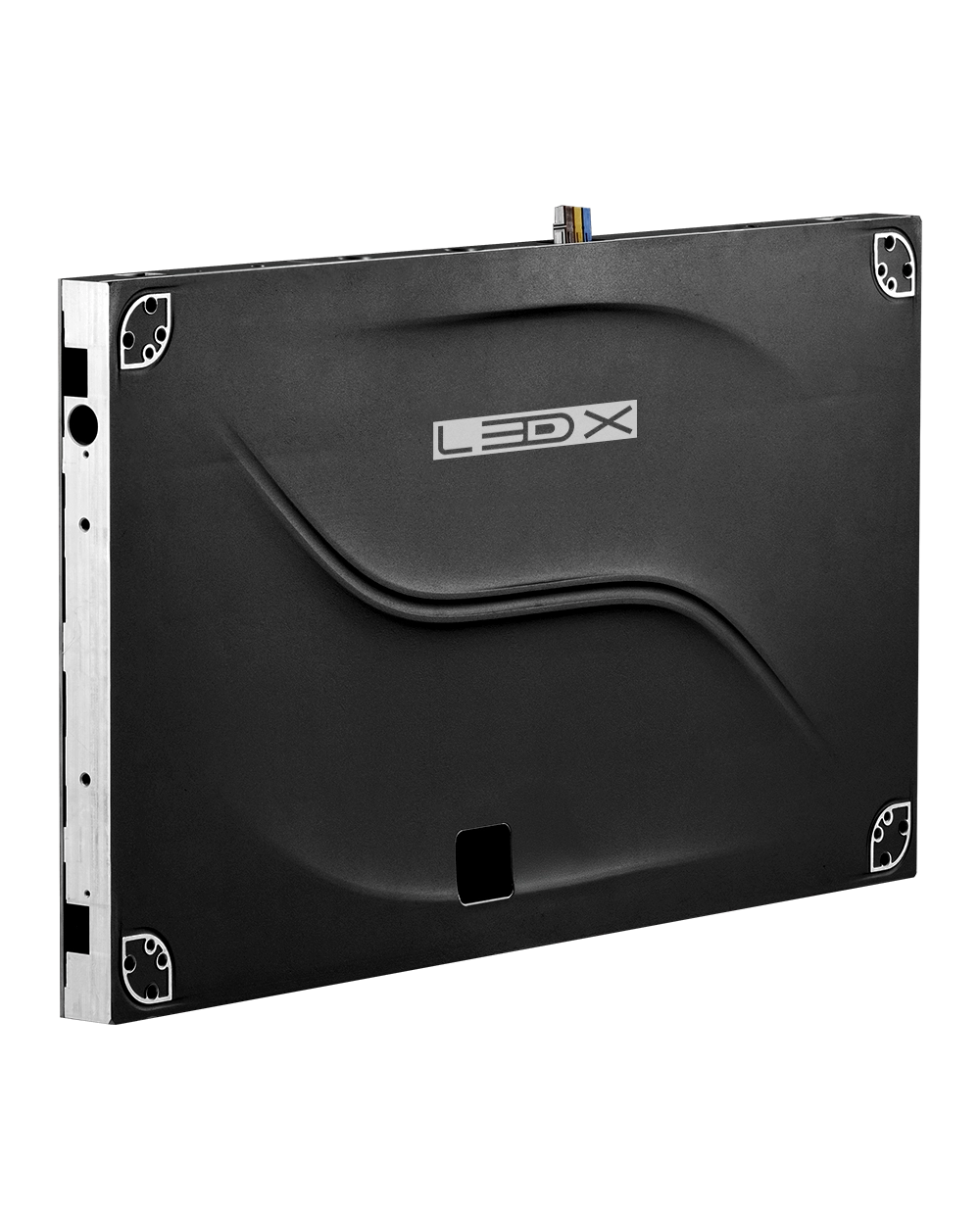

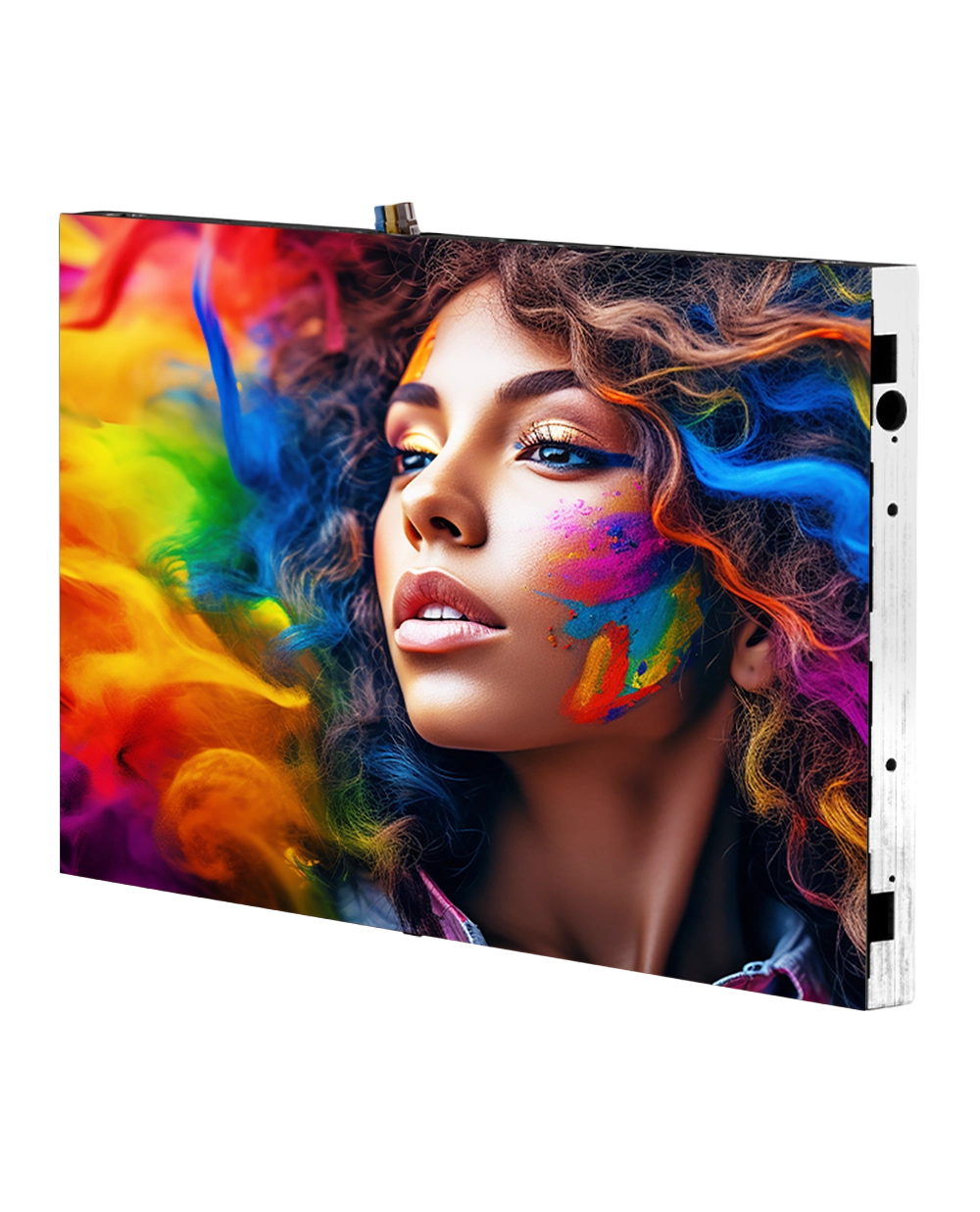

FINE PITCH - AP SERIES
AP SERIES
- Fine Pitch LED Displays
- Dimension: 600 × 337.5 mm
- Pixel Pitch: 0.93 mm, 1.25 mm, 1.56 mm
- Common Cathode Technology
- Intelligent Redundancy
- Brightness up to 1200 Nits
- Flip Chip COB Technology
PRODUCT HIGHLIGHTS
Power Efficient Common Cathode Technology
Designed with advanced Common Cathode architecture, the AP Series significantly optimizes power consumption while reducing heat generation for highly efficient and stable display performance.
Intelligent Redundancy for Reliable Performance
Integrated backup power and redundant data systems minimize failure risks and ensure uninterrupted visuals, making the display ideal for critical viewing environments.
High Brightness. Exceptional Clarity
With brightness levels up to 1200 nits, the AP Series delivers vivid visuals, enhanced clarity and superior visibility across varying ambient lighting conditions.
Advanced Flip Chip COB Technology
Engineered with Flip Chip COB technology, the display enhances thermal efficiency, color consistency and durability while delivering ultra-fine visual precision.
SPECIFICATIONS
| Model Name | AP - 0.93 | AP - 1.25 | AP - 1.56 |
|---|---|---|---|
| Pixel Pitch (mm) | 0.93 mm | 1.25 mm | 1.56 mm |
| Cabinet Dimension (W x H, mm) | 600 X 337.5 | 600 X 337.5 | 600 X 337.5 |
| Weight (kg/m²) | 23 | 23 | 23 |
| Service Access | Front | Front | Front |
| Maximum Brightness (nits) | 1200 | 1200 | 1200 |
| Viewing Angle | 160 X 160 | 160 X 160 | 160 X 160 |
| Contrast Ratio | 20000:1 | 20000:1 | 20000:1 |
| Max Power (W/m²)* | 350 | 325 | 300 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 |
| Ingress Protection | Front IP60 / Back IP50 | Front IP60 / Back IP50 | Front IP60 / Back IP50 |
| Cabinet Type | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium |
| Data Processing | 19 Bit | 19 Bit | 19 Bit |
Comes in Multiple variants, standard and high brightness.
These specifications are standard and can be customized. May change without prior notice.
