OUTDOOR - Modules

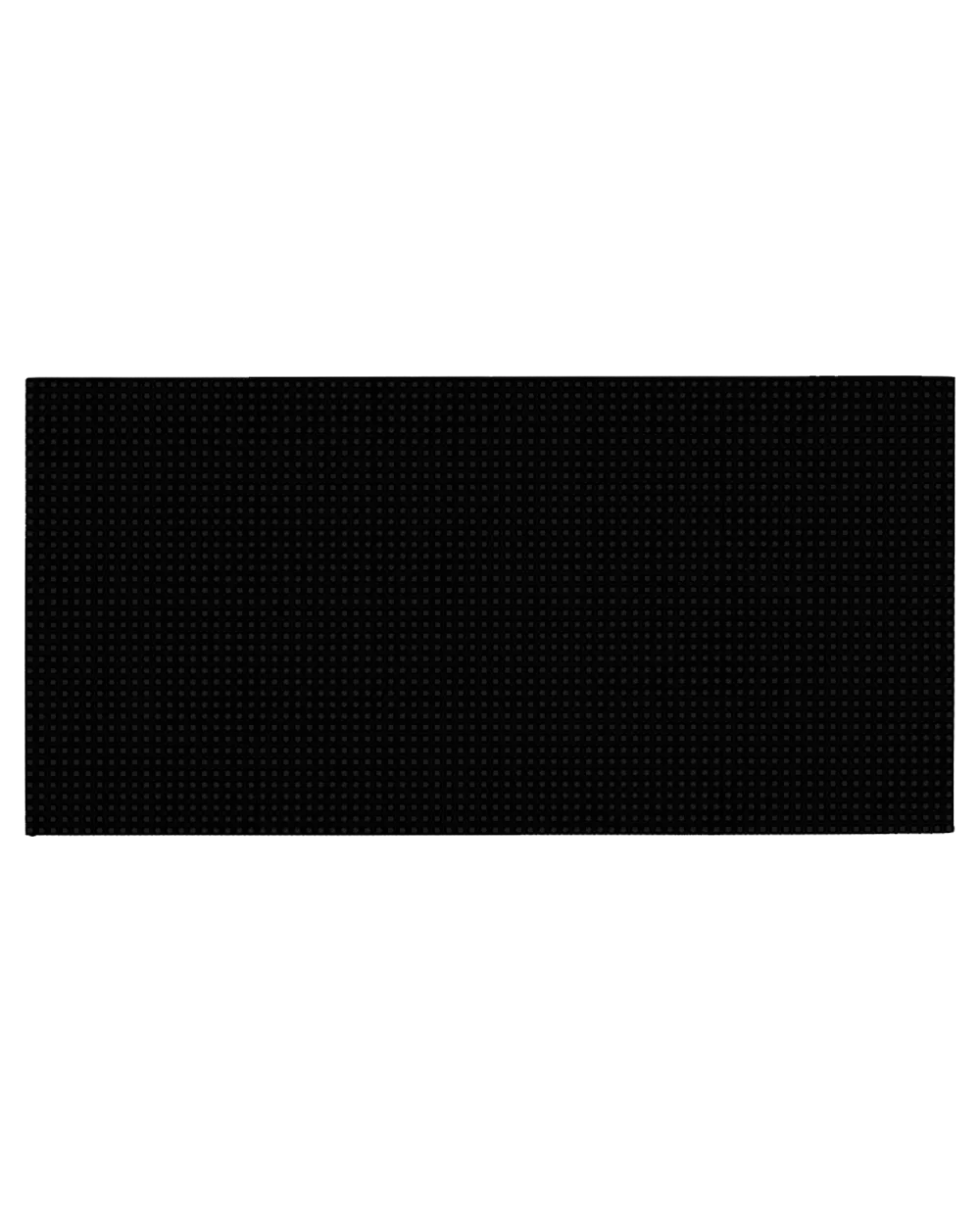

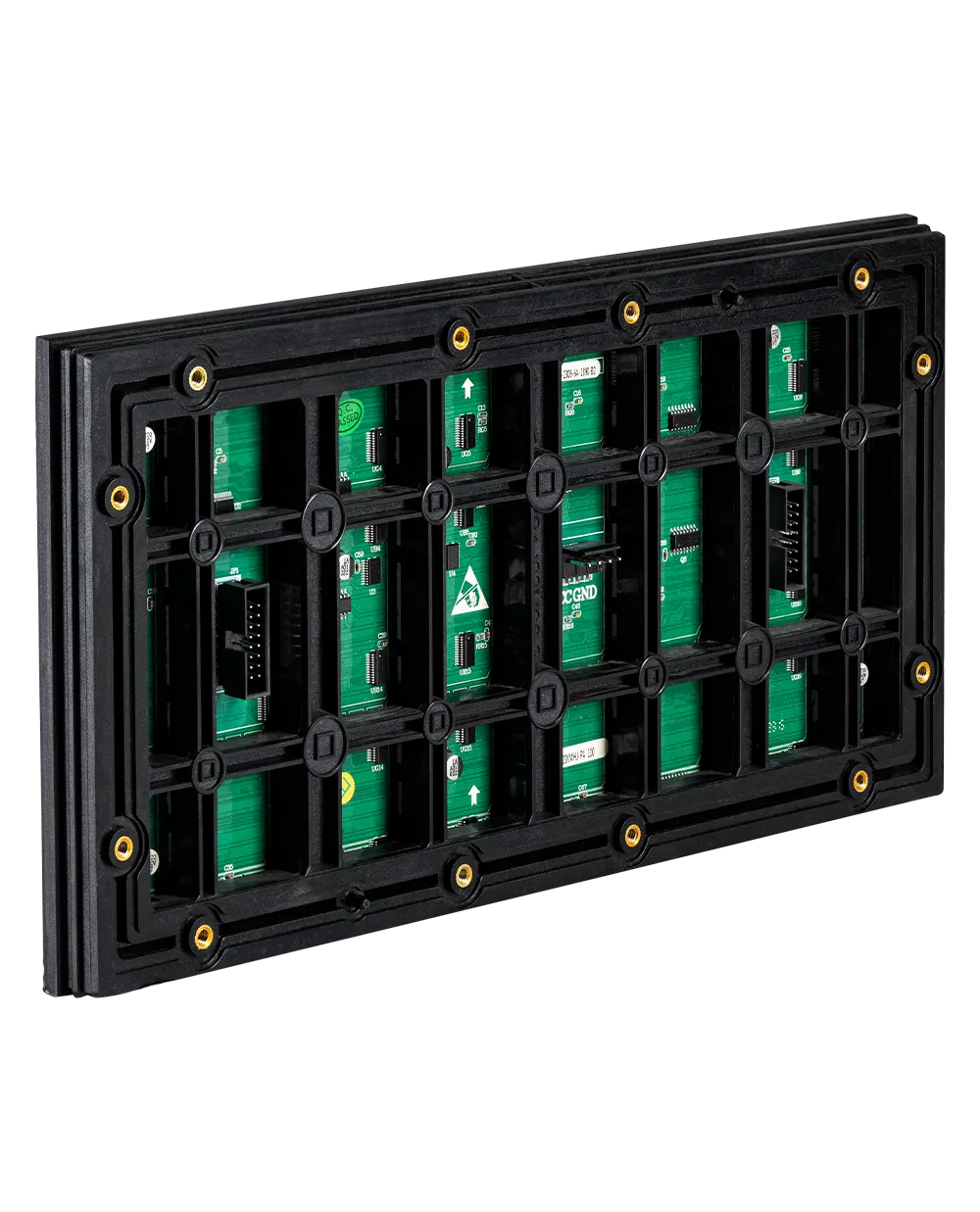

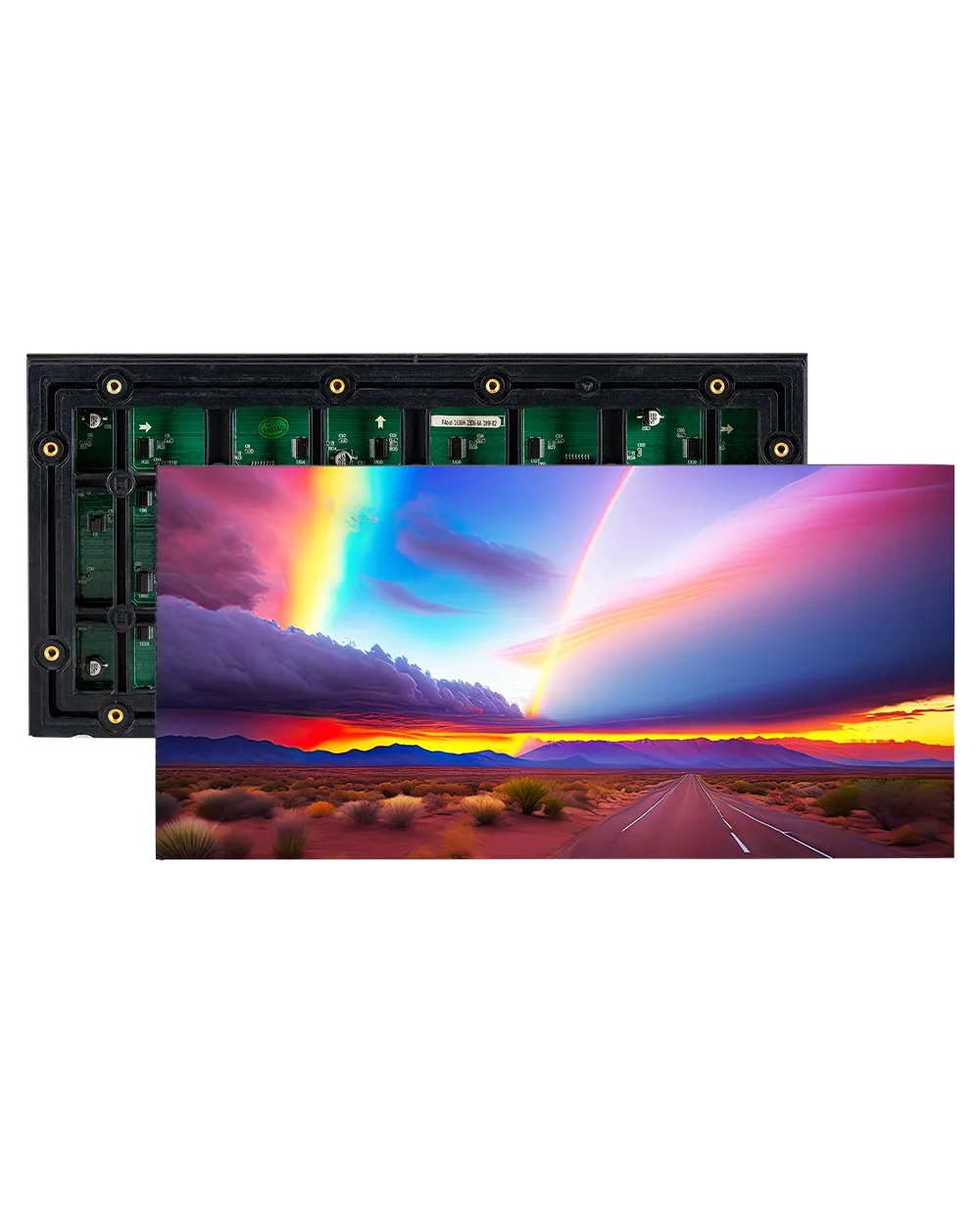

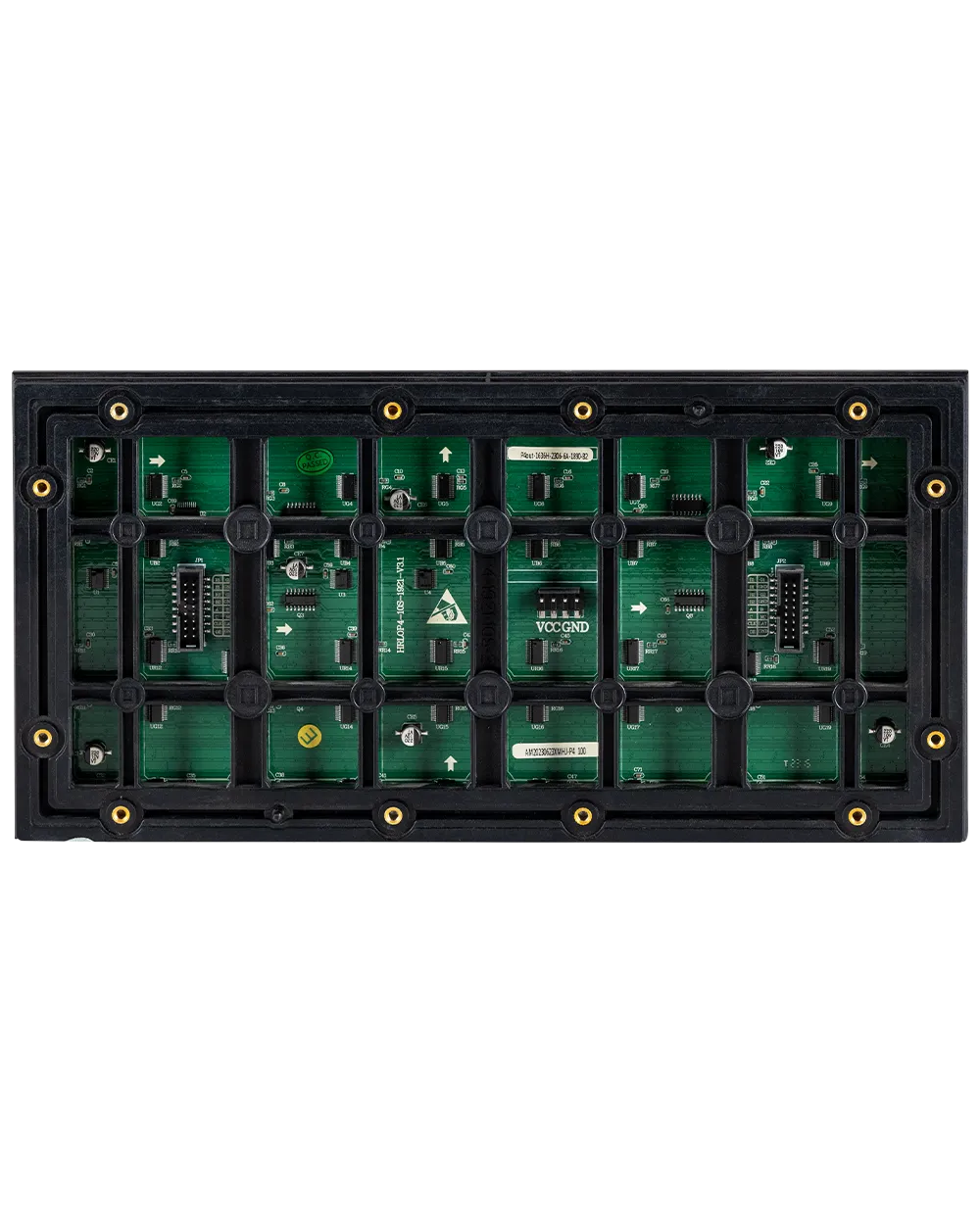

Outdoor Module
- Abmessungen: 320 × 160mm
- Pixelabstand: P4, P5, P6.67
- High Brightness Up to 6000 Nits
- 3840Hz High Refresh Rate
- Reliable Outdoor Performance
- Advanced Testing & Ageing Validation
- Extended Connectivity Architecture
- IP65 Weather Protection
PRODUCT HIGHLIGHTS

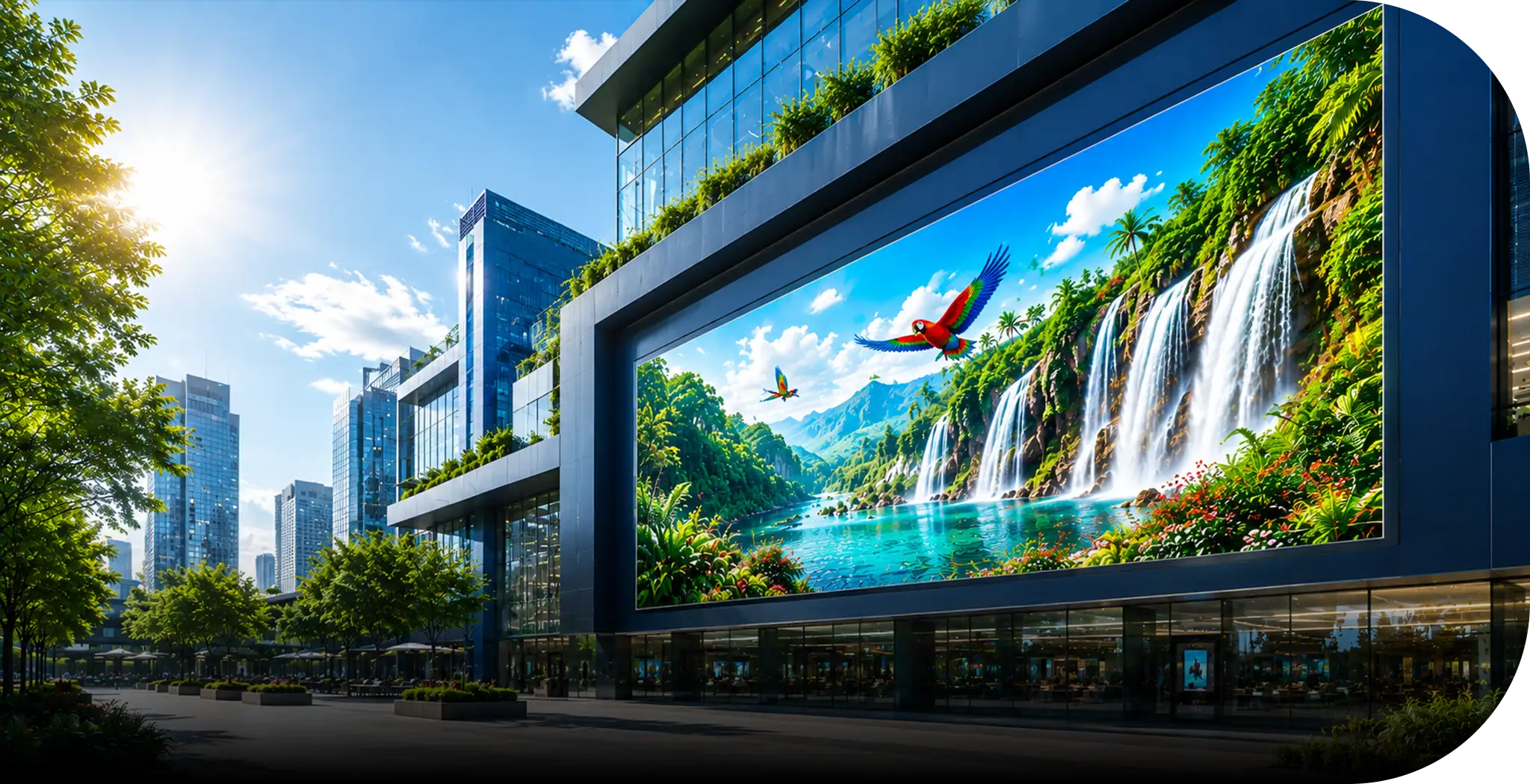

High Brightness upto 6000 Nits
Built for outdoor visibility, LEDX Outdoor Modules deliver brightness levels up to 6000 nits, ensuring vibrant content performance even under direct sunlight and high ambient lighting.
Smooth Visuals with 3840Hz Refresh Rate
Engineered with a 3840Hz refresh rate, the modules ensure smooth motion clarity, reduced flicker and stable visual output for outdoor digital signage and DOOH applications.
Reliable Outdoor Performance
Designed for demanding outdoor environments, LEDX Modules OD deliver consistent performance across large-format billboards, retail exteriors and high-visibility signage applications.

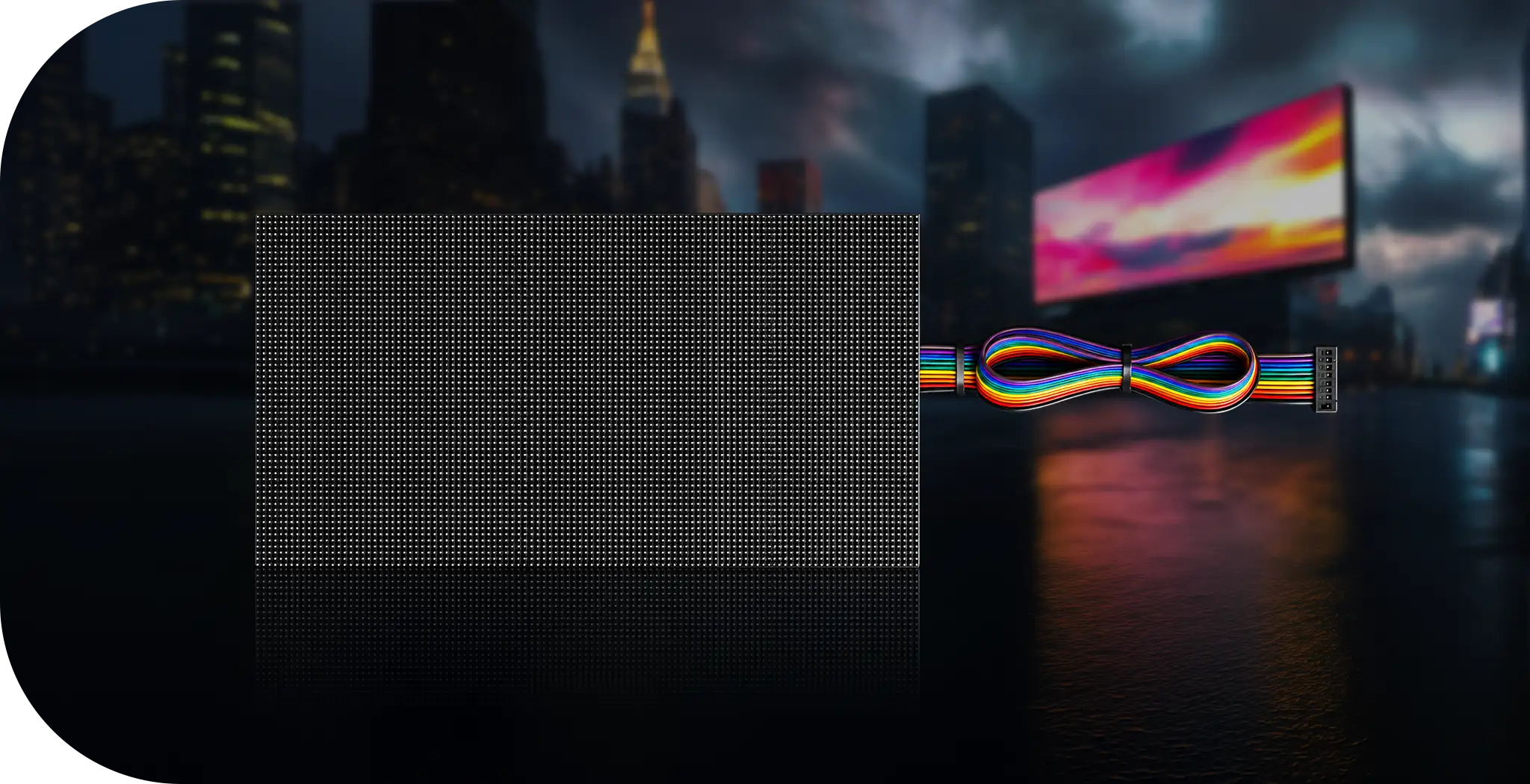

Extended Cable Length Advantage
With FRC cables and power cords up to 1 metre, the modules offer greater installation convenience, flexible routing and easier integration into outdoor cabinet structures.
SPEZIFIKATIONEN
| Modellname | OD - 4 | OD - 5 | OD - 6.67 |
|---|---|---|---|
| Pixelabstand (mm) | 4 mm | 5 mm | 6.67 mm |
| Pixel Density (px/m²) | 62,500 | 40,000 | 22,478 |
| Module Size (W x H, mm) | 320 × 160 | 320 × 160 | 320 × 160 |
| Module Resolution (px) | 80 × 40 | 64 × 32 | 48 × 24 |
| Brightness (nits) | 4500 | 4500 | 6000 |
| Bildwiederholfrequenz (Hz) | 3840 | 3840 | 3840 |
| Betrachtungswinkel | 160 X 160 | 160 X 160 | 160 X 160 |
| Schutzart (IP-Bewertung) | Front IP65 / Back IP30 | Front IP65 / Back IP30 | Front IP65 / Back IP30 |
| LED Arrangement | 1R, 1G, 1B | 1R, 1G, 1B | 1R, 1G, 1B |
| LED Wavelength (R/G/B) | 620 / 525 / 468 nm | 620 / 525 / 468 nm | 620 / 525 / 468 nm |
| Color Gamut | 110 % NTSC | 110 % NTSC | 110 % NTSC |
| Color Temperature | 8,280 – 10,120 K | 8,280 – 10,120 K | 8,280 – 10,120 K |
| Frame Rate | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
| Operating Temp | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Storage Temp | -30°C to 80°C | -30°C to 80°C | -30°C to 80°C |
| Humidity | 10% – 90% RH | 10% – 90% RH | 10% – 90% RH |
| Cooling | Natural convection · Fanless | Natural convection · Fanless | Natural convection · Fanless |
| Calibration | Brightness + Chromaticity | Brightness + Chromaticity | Brightness + Chromaticity |
| LED Lifespan | 100,000 hours | 100,000 hours | 100,000 hours |
Comes in Multiple variants, standard and high brightness.
Technische Daten können angepasst und ohne Vorankündigung geändert werden.
