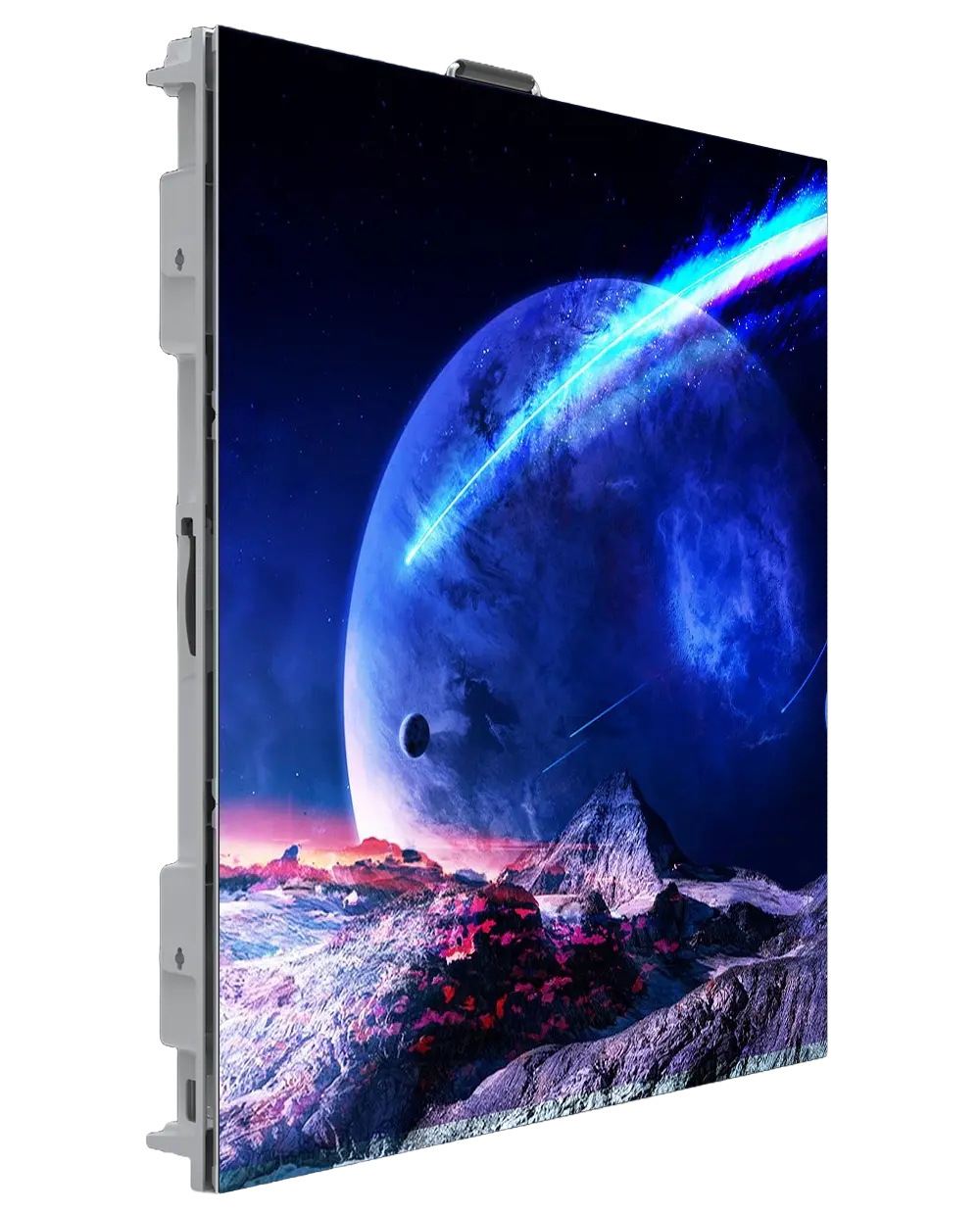

OUTDOOR – LXOX SERIES
LXOX SERIES
- Dual voltage LED Displays
- Dimension: 960 x 960 x 88mm
- Pixel Pitch: 4mm, 6.67mm, 8mm, 10mm
- 10,000 Nits Ultra High Brightness
- IP66 Ingress Protection (Front & Rear)
- Dual-voltage LEDs
- Heat-sink Based Thermal Management
- Slim, Fan-less Die-cast Cabinets
- Common Hub Card To Upgrade Flexibility
Bright, Reliable, and Built to Last
High-brightness LED displays with die-cast aluminum housing for maximum daytime visibility, easy installation, and long-lasting, reliable performance.
Cable free modules
All cables are neatly routed through the bottom of the cabinet, ensuring a clean, clutter-free appearance while minimizing the risk of accidental disconnection.
IP66 Rated – Front & Back Protection
Maximum Efficiency with Dual voltage LED
Perfectly Seamless. Immersive in Every Angle
Engineered for curves and L-shaped corners, our seamless corner cabinets enable stunning naked-eye 3D visuals from every angle.
Smarter Power. Zero Wastage
SPECIFICATIONS
| Model Name | LXOX - 4 | LXOX - 6.67 | LXOX - 8 | LXOX - 10 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 4 mm | 6.67 mm | 8 mm | 10 mm |
| Cabinet Dimension (W x H x D) mm | 960x960x88 | 960x960x88 | 960x960x88 | 960x960x88 |
| Weight (kg/m²) | 26 | 25 | 25 | 25 |
| Service Access | Back | Back | Back | Back |
| Maximum Brightness (nits) | 5000 | 5000 / 8000 / 10000 | 5000 / 8000 / 10000 | 5000 / 8000 / 10000 |
| Viewing Angle | 160 x 160 | 160 x 160 | 160 x 160 | 160 x 160 |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Max Power (Watts/m²) | 687 | 591 | 520 | 511 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Ingress Protection | Front IP66 / Back IP66 | Front IP66 / Back IP66 | Front IP66 / Back IP66 | Front IP66 / Back IP66 |
| Cabinet Type | Die-Cast Al | Die-Cast Al | Die-Cast Al | Die-Cast Al |
| Data Processing | 14-16 Bit | 15 Bit | 16 Bit | 16 Bit |
Comes in Multiple variants, standard and high brightness
These specifications are standard and can be customized. May change without prior notice.
